The process of using the hinge assembly machine is to switch on the power, perform a reset, check the work station material and enter the automatic mode.
Supply
Common Hinge Assembling Machine
Methods

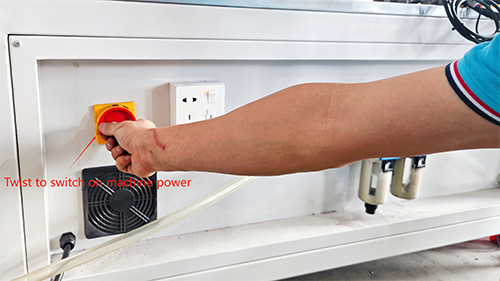

1. Turn on the power switch

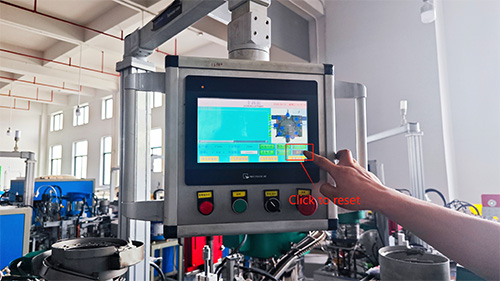

2. Press and hold the reset button at the bottom of the screen for 3 seconds and release.

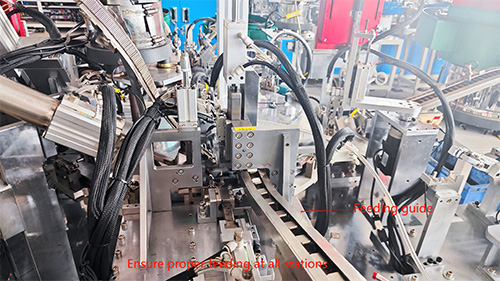

3. Check that all materials from 0 to 8 work stations arrive smoothly at the material sensing area of the assembly chute.
4. Check that there is no product in the assembly mold, empty the product on the mold.
5. Check the assembly of straight arm adjusting screws at station 0 and the assembly of base fixing screws at station 8 to keep the materials in the induction area of the standby chute.

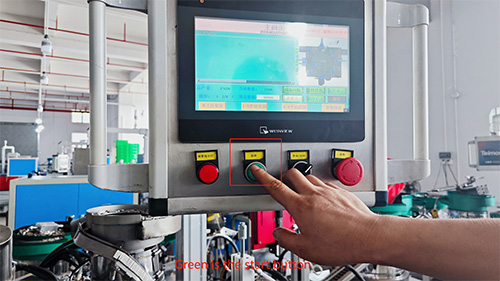

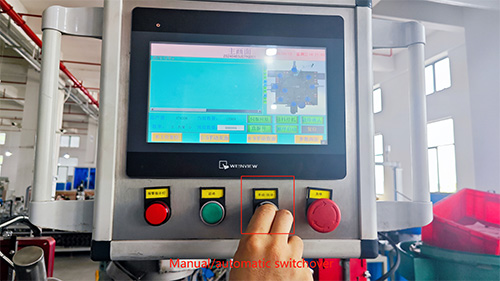

6. Click the screen single-action to automatic, press and hold the green button below the untouching screen for 3 seconds to start, the device enters the automatic cycle of production procedures.
7. After the automatic cycle of the equipment, prohibit all injurious behaviors related to human safety.
Keywords: hinge assembly machine
