How to install slide assembly machine

The process of installing the slide assembly machine is fixing the main machine, connecting the power supply air source, test run and debugging parameters.

Supply

Slide Rail Assembly Machine

Tools

220V, 50Hz single-phase power supply cabinet or box

Methods

1. Arrange a level ground in the workshop (no need to lay foundation, but the ground should be level). Workers in the level ground to the host leveling, solid. Assemble the vibration disk and other parts.

2. In the case of closing all the switches inside the equipment, access to the 220v mains power supply (single wire must be more than 2.5 square)

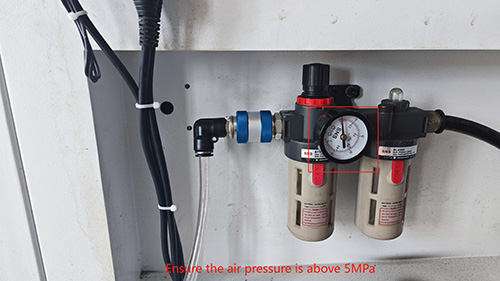

3. In the case of ensuring safety, and then access to the main gas source (air pressure must be more than 5MPa)

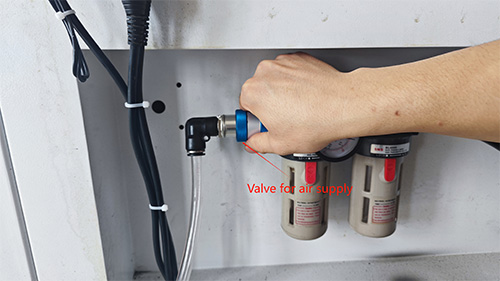

4. After checking the safety of the power supply, open the hand-pull valve of the gas source. Manual trial run, simulate the automatic operation of the machine when the material handling shift action

5. Open the parameter setting interface on the control panel. According to the product parameters for setting. Pole height and other parameters to meet product requirements

6. After the manual test run without error, you can start the fully automatic operation program for production.

Efficiently completing the installation of the slider assembly machine is very important for buyers to follow the above steps, you can easily install it. (Note: The operation method of this article is applicable to all models of slide assembly machine purchased in our factory. Meanwhile, the whole machine has been assembled before leaving the factory. After the arrival of the equipment, follow the steps for simple assembly can be.)
